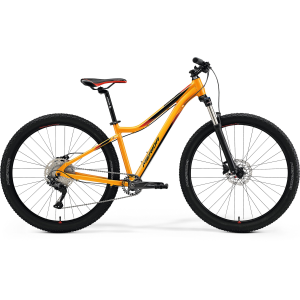

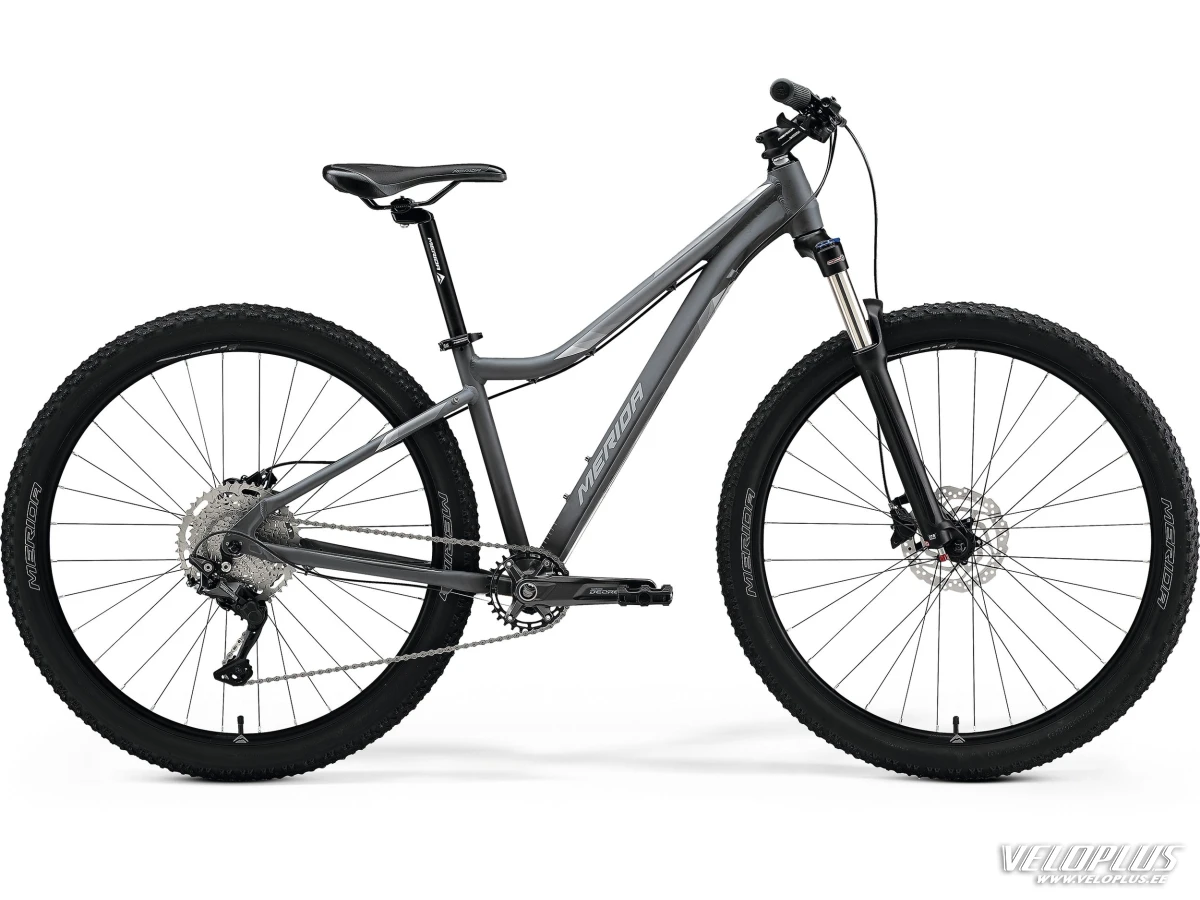

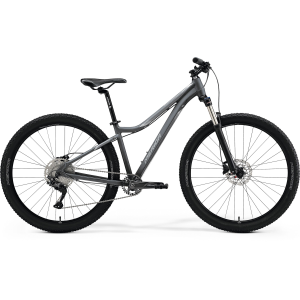

A lightweight double butted frame with a comfortable and confidence-inspiring geometry is the heart of the MATTS 70. The MATTS range looks back at a long and successful history as some of the most popular bikes in the MERIDA line-up. A 100 mm suspension fork, paired with a smooth-shifting and reliable Shimano drivetrain and powerful hydraulic brakes, deliver comfort, perfect acceleration, and all-weather stopping power.
MATTS stands for 'MERIDA Aluminium TIG-welding Technology System' and is one of the longest-running bike categories in our history. This classic mountain bike offers quality aluminium frames, solid spec packages and reliable performance at a fantastic price. A more compact top tube, paired with a higher front end, provide the MATTS with a more upright riding position, deliver extra riding comfort for the rider as well as a better view of what lies ahead. With its comfort-inspiring geometry, paired with 27.5"" wheels and double or triple drivetrains deliver the MATTS bikes are the perfect entry into the world of mountain biking.
Double butted aluminium frame
100 mm suspension fork with lockout
Shimano drivetrain, hydraulic disc brakes
Comfort inspired geometry for maximum control and enjoyment
Fast-rolling 27.5" wheels
Multiple fixing points for fender, carrier and kickstand
| Frame | - | MATTS 7. SPEED; MAT aluminium; 27.5" WHS; 135x9 AST; BSA BBR |
| Wheel size | - | 27,5" |
| Gears | - | 10 (1x10) |
| Suspension fork | - | Suntour XCR32 LOR; Air; 100mm suspension travel; Lockout; 42mm fork offset |
| Brake system | - | Power Hydraulic |
| Brake rotors | - | Shimano RT10; 160 mm |
| Rear derailleur | - | Shimano Deore M5120 Shadow+ |
| Shifters | - | Shimano Deore M4100 |
| Crankset | - | Shimano Deore M5100; 32 teeth |
| Cassette | - | Shimano Deore M4100; 11-46 teeth; 10 speed |
| Chain | - | KMC X10 |
| Headset | - | FSA NO.10P Neck15 |
| Stem | - | MERIDA CC; MAT aluminium; 31.8mm diameter; 17° stem angle |
| Handlebar | - | MERIDA COMP CC; MAT aluminium; 660mm width; 25mm rise |
| Grips | - | MERIDA EC |
| Rims | - | MERIDA CC; 17mm inner width; MAT aluminium |
| Front hub | - | Shimano TX505; 100x9mm width front hub; 32 spoke holes; Centerlock |
| Rear hub | - | Shimano TX505; 135x9mm width rear hub; 32 spoke holes; Centerlock |
| Tyres | - | MERIDA K1080; 27.5x2.2"; wire |
| Saddle | - | MERIDA Sport comfort |
| Seat post | - | MERIDA CC; MAT aluminium; 27.2mm diameter; 15mm setback |
| Inner tubes | - | 27.5x2.2 A.V |
| Pedals | - | VP VPE-891 |
| Weight | - | 13,07 kg |
*Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
