MERIDA

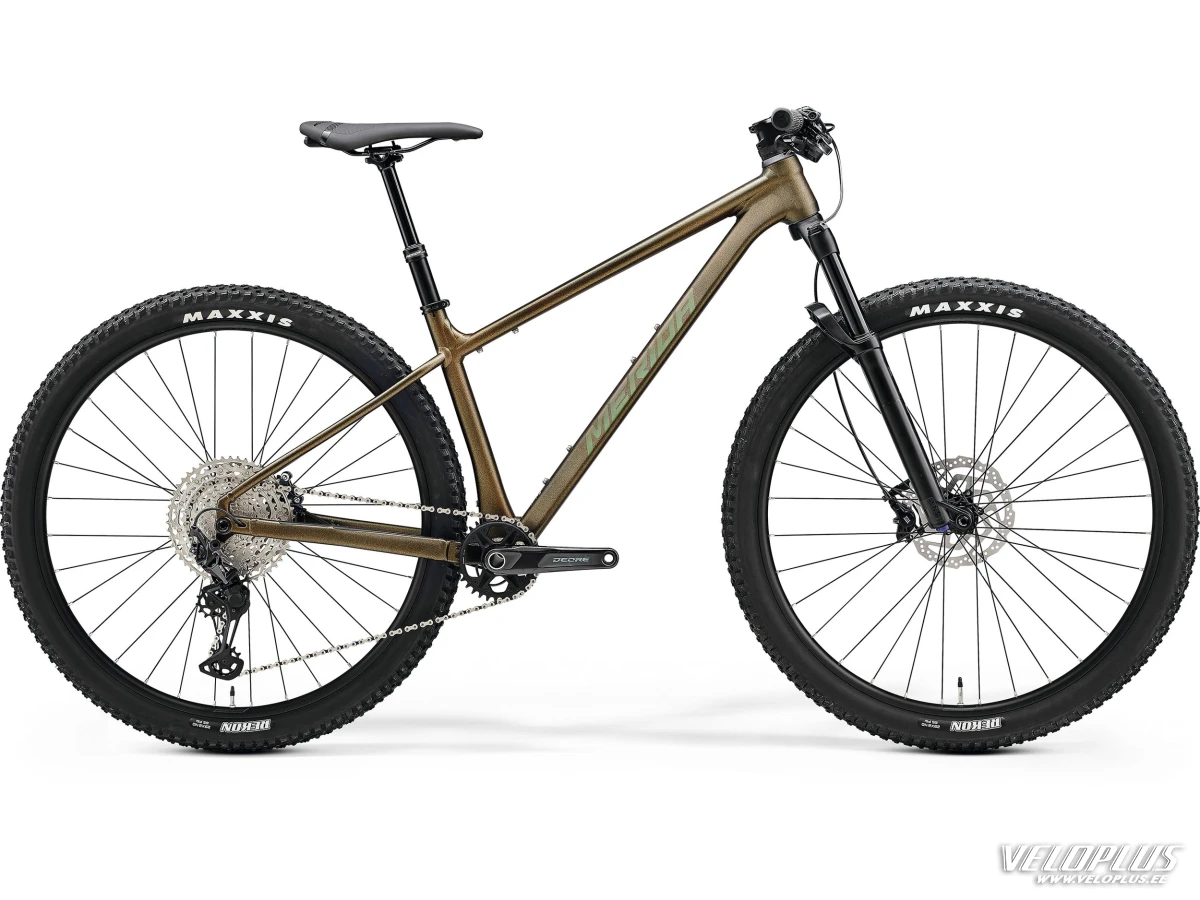

Merida BIG.NINE TR Limited
- Lifetime warranty for frame!
- 2.4" tyre clearance
- 120 mm Manitou Machete
- Shimano 12-speed drivetrain
Frame size:
Merida BIG.NINE TR Limited
The BIG.NINE TR LIMITED blurs the line between cross-country and trail, with a high-value, high-performance aluminium frame that's as capable on the descents as it is on the climbs. Alongside our progressive geometry, AGILOMETER sizing and clearance for 2.4" tyres, we've add more aggressive rubber, a dropper seatpost and 120 mm travel Manitou fork to boost descending confidence while keeping it lightning-fast on singletrack. Shimano's brakes and 12-speed drivetrain round the package out.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing.
High-performance LITE aluminium frame with 2.4" tyre clearance
Manitou Machete fork with 120 mm travel for improved descending ability
MERIDA wheelset with trail-ready Maxxis tyres
Progressive geometry with AGILOMETER sizing for confident handling
Wide range Shimano 12-speed drivetrain
Lightweight MERIDA dropper seatpost with remote lever
| Frame | - | BIG.NINE LITE III; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR |
| Wheel size | - | 29" |
| Gears | - | 12 (1x12) |
| Suspension fork | - | Manitou Machete Comp; Air; 120 STR; Tapered; 44 mm fork offset |
| Brake system | - | Shimano SLX; 2 piston |
| Brake rotors | - | Shimano RT10; 180mm |
| Rear derailleur | - | Shimano XT M8100; SGS |
| Shifters | - | Shimano Deore M6100 |
| Bottom bracket | - | Shimano BB-MT-501; 24mm |
| Crankset | - | Shimano Deore M6100; 32 ATC |
| Cassette | - | Shimano Deore M6100; 10-51 ATC; 12 GER |
| Chain | - | KMC X12 |
| Headset | - | Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing |
| Stem | - | MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD |
| Handlebar | - | MERIDA EXPERT CC; MAT aluminium; 760 WHB; flat |
| Grips | - | MERIDA COMP EC |
| Rims | - | MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready |
| Front hub | - | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
| Rear hub | - | Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock |
| Tyres | - | Maxxis Rekon; 29x2.4"; wire |
| Saddle | - | MERIDA COMP SL; V-mount; incl. MERIDA minitool |
| Seat post | - | MERIDA EXPERT TR; 30.9 DSP; 0 SSB; XS 100 SPT - S 125 SPT - M 150 SPT - L/XL 170 SPT |
| Weight | - | 13,2 kg |
| Max Weight (bike + rider) | - | 135 kg |
*Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
Outside of Estonia we send bikes only in bike box and it will need an assemble by client.
Average bike order processing time is 2-3 business days + shipping.
