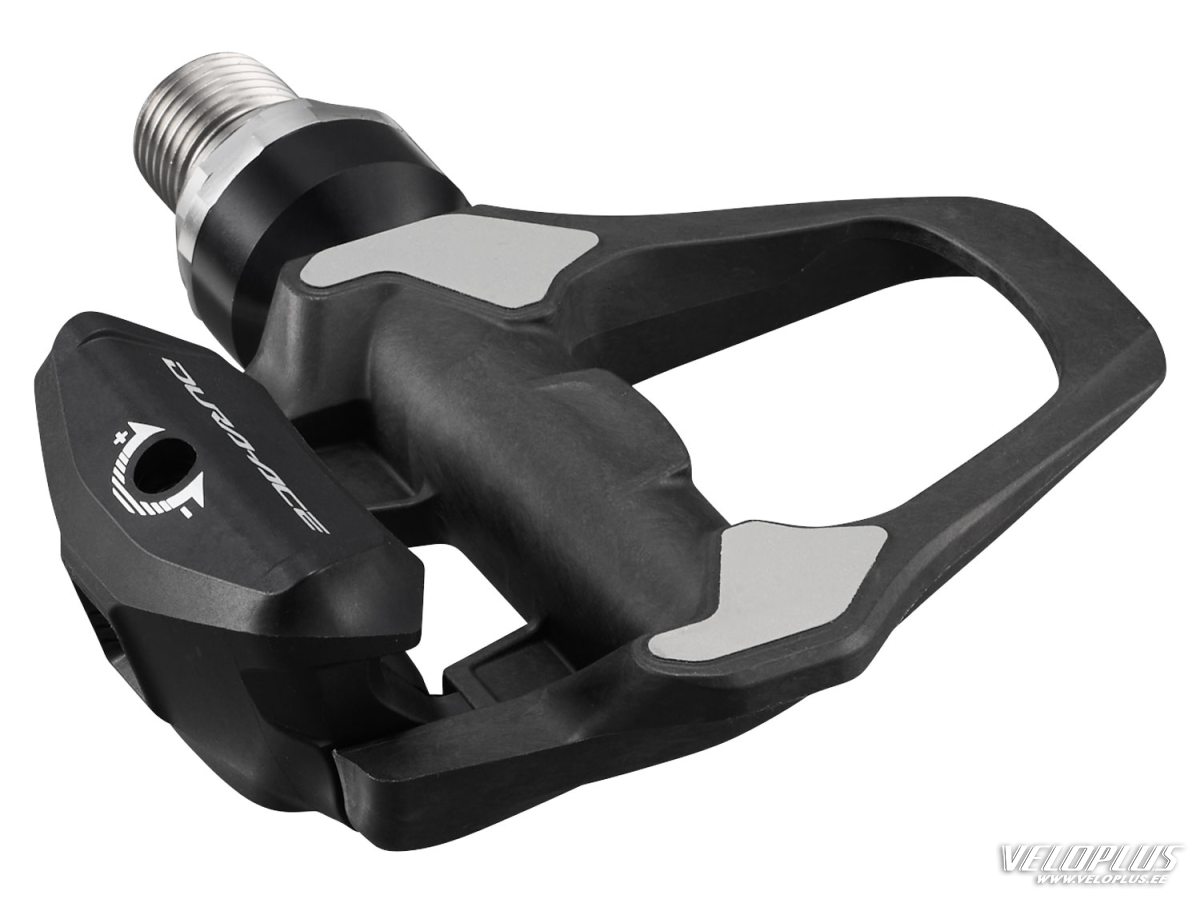

Road Pedals Shimano Dura-Ace PD-R9300
Shimano Dura-Ace PD-R9300 SPD-SLR road pedals with carbon body, 10.5° clip-in angle and CL-SL110 cleats included. Weight approximately 229 g.
- New SPD-SLR system
- Approx. 229 g
- 10.5° clip-in angle
- CL-SL110 cleats included
Overview
Road Pedals Shimano Dura-Ace PD-R9300
Shimano Dura-Ace PD-R9300 are high-end road pedals for professionals and ambitious cyclists, introducing Shimano's new SPD-SLR standard. The extremely low profile and extra-wide platform create a stable pedalling base and help transfer power as directly as possible to the bike.
The new SPD-SLR shoe, cleat and pedal interface is 2.3 mm lower than the previous SPD-SL system, bringing the foot closer to the pedal axle. A larger engagement area and narrower 10.5° clip-in angle allow faster and more natural engagement. An integrated stainless steel contact plate improves interface stiffness, while the wider bearing arrangement and revised axle design increase stiffness by 11% compared with the PD-R8200.
A heat-treated axle and optimised bearing surfaces reduce rotational resistance by 53% compared with the PD-R8200. The lightweight injection-moulded carbon composite body, sealed mechanism and adjustable release tension make the PD-R9300 a race-level pedal designed for maximum efficiency.
Shimano CL-SL110 yellow cleats are included and provide 6° of lateral float for increased comfort and reduced joint stress. SPD-SLR cleats are designed exclusively for SPD-SLR pedals and are not backwards compatible with SPD-SL pedals.
- Use: road cycling
- Groupset: Shimano Dura-Ace
- Model: PD-R9300
- System: single-sided SPD-SLR
- Clip-in angle: 10.5°
- Pedal body: carbon composite
- Axle: nickel-chromoly steel
- Integrated stainless steel contact plate
- Sealed mechanism
- Adjustable release tension
- Included cleats: CL-SL110 yellow, 6° float
- Optional cleats: CL-SL100 red / CL-SL120 blue / CL-SL130 grey
- Axle options: standard / +4 mm
- Weight: approx. 229 g
