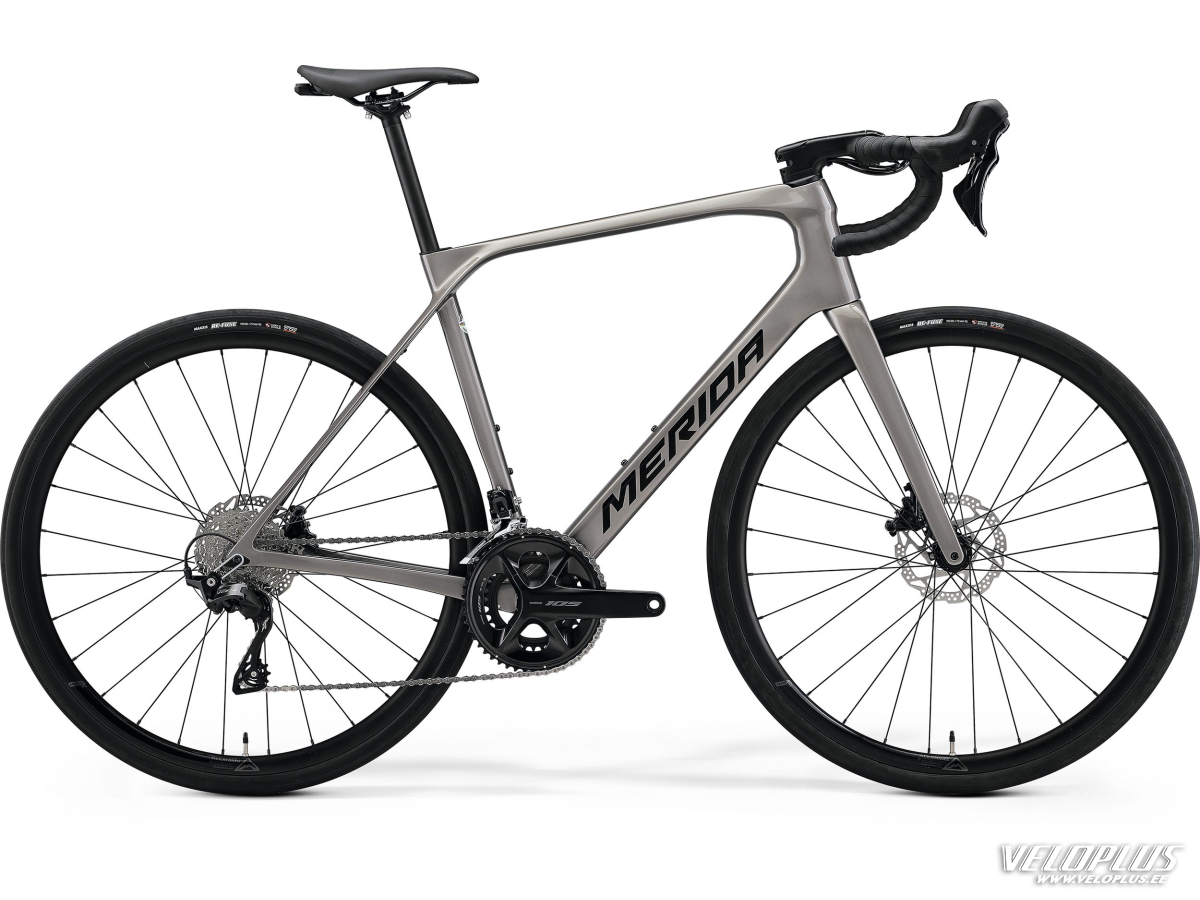

Merida SCULTURA ENDURANCE 4000

Merida SCULTURA ENDURANCE 4000

Our SCULTURA ENDURANCE 4000 is far from being a conventional entry-level carbon bike. Featuring the same test and award-winning CF3 carbon frame as its 'bigger brothers', it comes equipped with the latest Shimano 105 12-speed groupset that offers accurate shifting and pinpoint braking. The well-proven WIRE PORT cable management system keeps the cockpit free of cables and helps to give the bike a super sleek overall appearance.

The SCULTURA ENDURANCE is the perfect choice for more leisure-focused cyclists who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Wide tyres offer plenty of comfort, even on the most pothole-littered country lanes, while a longer head tube provides a more relaxed riding position. An instant hit with the international cycling press and besides being given a 'comfort' award by RennRad, it also managed to get a long list of compliments like 'excellent comfort', ‘confidence inspiring', 'lively feel' and 'enjoyable' by reference cycling media such as Gran Fondo, Cyclingnews, Cyclingtips and Road.cc. Compared to its namesake, the SCULTURA, the ENDURANCE has a more comfort-orientated geometry, plenty of tyre clearance and seamless integration of the latest standards. It sits between the road-biased SCULTURA on one side and the gravel/adventure SILEX on the other, while the SCULTURA ENDURANCE GR lineup offers gravel-racing focused options with off-road ready tyres and flared handlebars.

• Lightweight CF3 carbon frame with comfort orientated geometry and confidence inspiring handling
• MERIDA EXPERT SL II stem and MERIDA EXPERT SL handlebar combo
• Maxxis Re-Fuse 32 mm tyres and EXPERT SLIII wheels
• Shimano 105 12-speed groupset
• MERIDA carbon seat post
• Under-saddle pouch with MERIDA multitool

• FLEX STAY - By using a specific tube shape and careful design of the seat- and chainstay of our hardtail bikes, we enable them to work like flat leaf springs, absorbing surface bumps and reducing vibrations. This makes the rear end more comfortable, can improve power delivery and has a positive impact on rider fatigue. In particular, on performance bikes that are ridden over long distances and uneven surfaces, this can have a great effect on the overall riding performance and enjoyment.
• X-TAPER HEADTUBE - Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.
• DI2 READY - Shimano's Di2 electronic shifting system offers fast, smooth and reliable shifting. In particular, in the road world, it has proven itself as the primary choice when top performance is at the top of the agenda. With that in mind, we have a broad selection of performance road frames that are Di2 READY and can accommodate the electrical cable, battery and other little tweaks that the system requires.
• NANO MATRIX CARBON - NANO MATRIX CARBON is a special kind of carbon fibre where we add extremely tiny, nano-scale particles to the resin that binds the individual carbon fibres together. These then work on a molecular level to protect them from damage. It’s so effective that it can actually increase the finished carbon fibre’s impact resistance by up to 40%, allowing us to build stronger and lighter composite frames that result in a faster and tougher bike.
• AWS ANTI WRINKLE SYSTEM - This is a method we use to manufacture our carbon fibre frames. First, the carbon fibre that makes up the frame is laid around special formers. We then use a bladder to compress the layers against the outside of the frame mould, giving a smooth and wrinkle-free internal finish, removing any voids in between the layers of carbon that can cause potential weak points, resulting in a stronger, lighter frame.
• DISC COOLER - Used on our carbon fibre road and gravel bikes, DISC COOLER is a finned piece of forged aluminium that sits between the brake calliper and frame. The aluminium piece helps to draw heat from the braking system and radiates it away quickly. It reduces the temperatures by up to 35% and helps to keep your brakes working at their best for improved control and performance on long descents and under heavy braking.
• INTERNAL CLAMP - When every second counts, the smallest of details can make the difference between winning and losing, so we look at every aspect of our frames to make them as sleek as possible. By using a seat post clamping mechanism that secures the post with a wedge inside the frame itself, we minimise the turbulence and potential drag while keeping post height adjustment simple, giving a frame that is more aerodynamic and also better looking.
• REMOVABLE F-MOUNT - A special, removable piece fitted to the seat stay bridge that can be attached to the bike to allow full mudguards to be fitted easily for protection from water and dirt, but also completely removed to increase tyre clearance and give a clean, sleek look to the bike when full guards are no longer needed. This gives the bike the benefit of full mudguards when required but no unsightly mounts when they are not.
• WIRE PORT - MERIDA designed headsets that enable all control cables from the handlebar to enter the frame through the headset cover, creating a clean and uncluttered look, allowing for a lighter, stronger and more aerodynamic frame structure than with conventional cable ports. Depending on the model, the cables are run completely internally (including the bar and stem) or semi-integrated, where the cables enter the frame underneath the stem.
