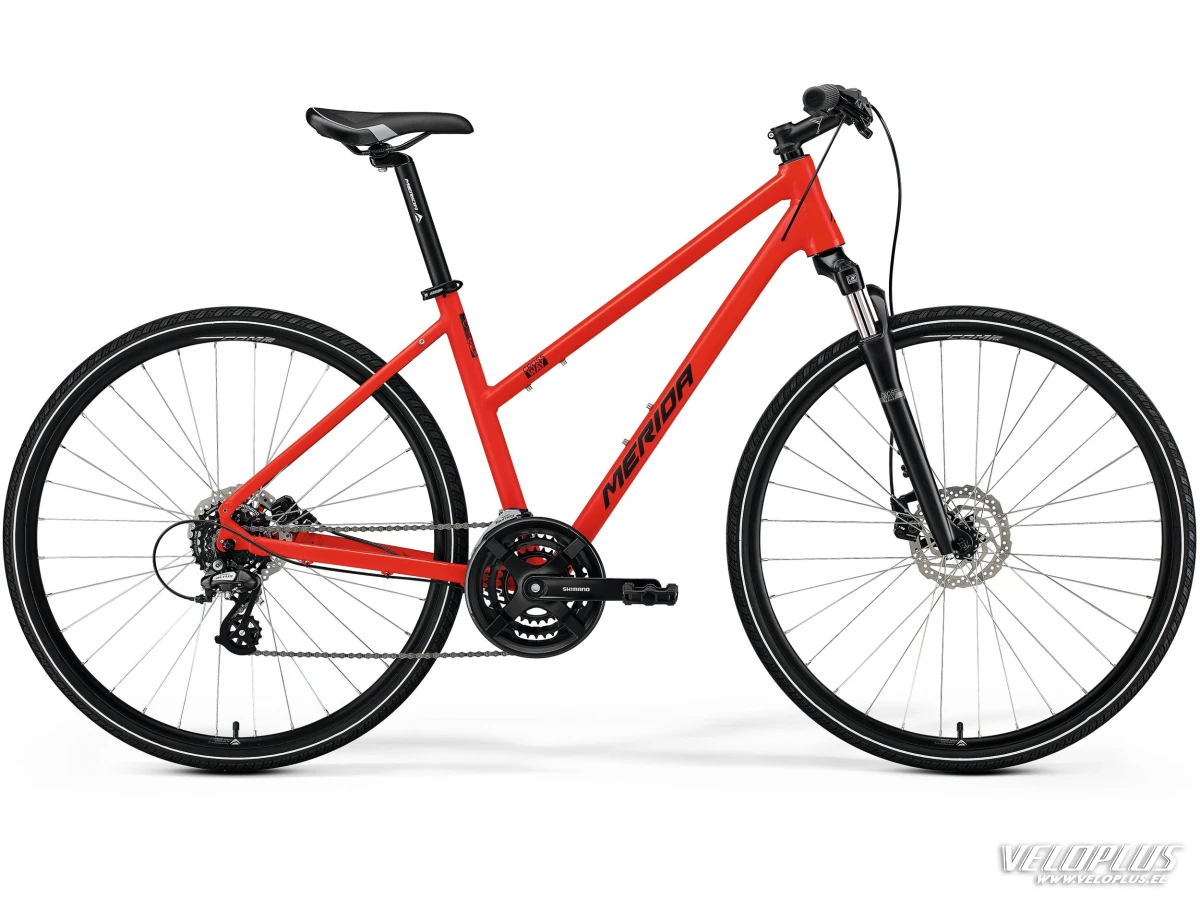

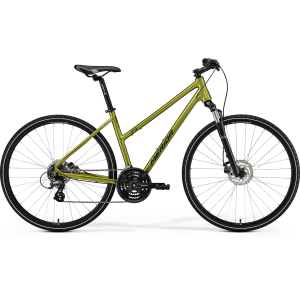

You don't always have to spend big-ticket money to get a reliable lightweight aluminium hybrid that delivers when it comes to day-to-day usability, built-in weekend fun and all-round riding comfort. Our CROSSWAY 10 comes with easy to modulate and low maintenance disc brakes, a broad 3x7 speed gear range that gets you to your destination quickly as well as climbs steeper slopes with ease. A suspension fork provide extra comfort and riding safety.
The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork and adjustable stems on selective models, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort.
Lightweight aluminium frame
Suspension fork
Multiple fixing points for rear rack and fenders
Comfort geometry
Shimano 3x7 speed drivetrain
| Frame | - | CROSSWAY TFS III; MAT aluminium; 700x50C max. WHS; 135x9 AST; BSA BBR |
| Wheel size | - | 28" |
| Gears | - | 21 (3x7) |
| Suspension fork | - | Suntour NEX DS; Coil; 63 STR; 700x50C max. WHS |
| Brake system | - | Shimano BR-M375 Lever attached in Shifter |
| Brake rotors | - | Shimano RT10; 160 mm |
| Rear derailleur | - | Shimano RD-M310-7 |
| Front derailleur | - | Shimano FD-TY510-3 |
| Shifters | - | Shimano ST-EF500 |
| Bottom bracket | - | Shimano BB-UN101 73-123 |
| Crankset | - | Shimano TY301; 48-38-28 ATC; MAT Aluminium; 170mm-XXS/XS/S, 175mm-M up |
| Cassette | - | Shimano CS-HG200-7; 12-32 ATC; 7 GER |
| Chain | - | Sunrace CNM84 |
| Headset | - | MERIDA M2345 |
| Stem | - | MERIDA COMP TK; MAT aluminium; 25.4 DSH; 7 ASD; 100mm |
| Handlebar | - | MERIDA CC; MAT steel; 620 WHB; 30 RHB |
| Grips | - | MERIDA EC |
| Rims | - | MERIDA CC; 17 IWR; MAT aluminium |
| Front hub | - | Shimano TX505; 100x9 WHF; 32 SPH; Centerlock |
| Rear hub | - | Shimano TY505-7; 135x9 WHR; 32 SPH; Centerlock |
| Tyres | - | MERIDA K1171; 700x40C; wire |
| Saddle | - | MERIDA Cross Sport |
| Seat post | - | MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium |
| Seat clamp | - | MERIDA COMP QR |
| Pedals | - | VP VPE-891 |
*Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
