ROCK MACHINE
E-Fatbike ROCK MACHINE VYÖRY E90
- Shimano EP6 motor
- CUES LinkGlide 1x10
- 4-piston brakes
- 26x4.8" fat tires
Frame size:

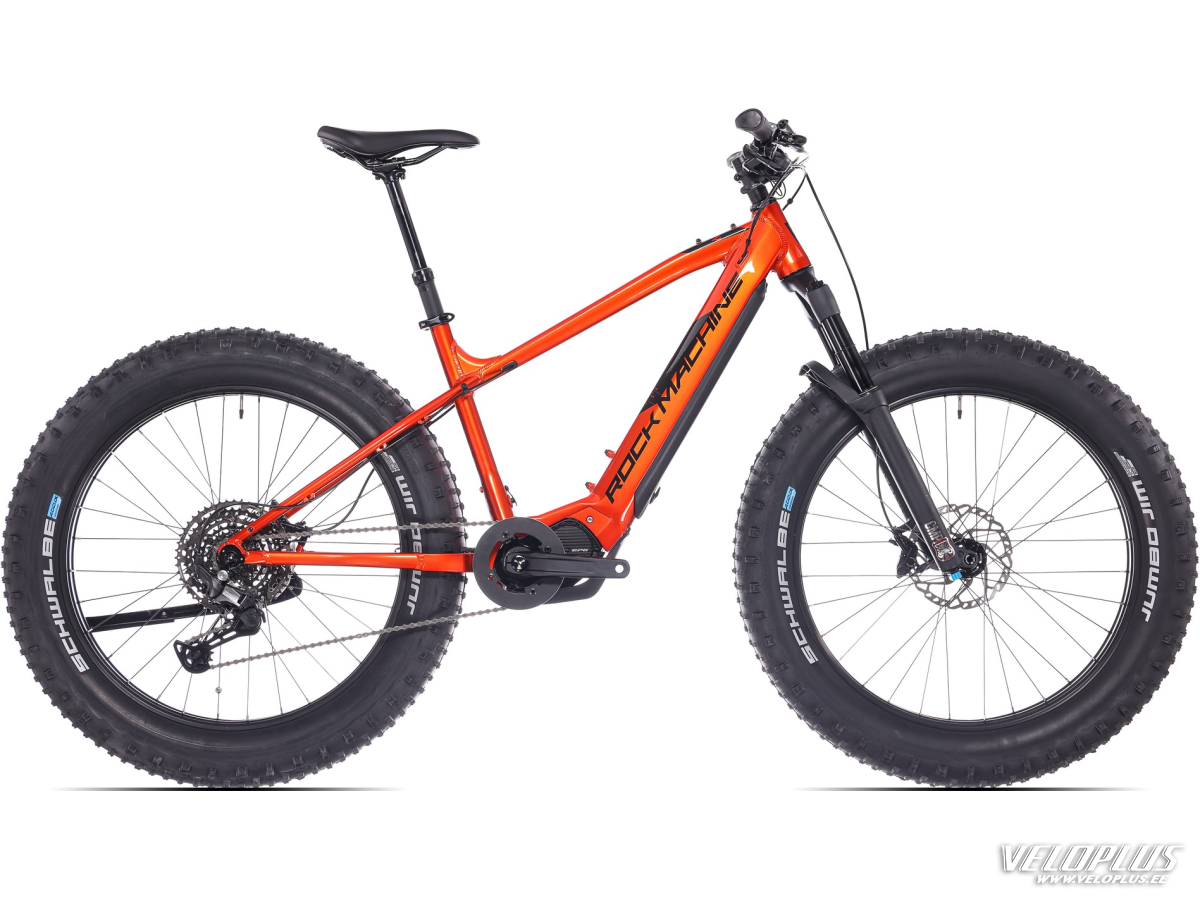

E-Fatbike ROCK MACHINE VYÖRY E90
The ROCK MACHINE Vyöry E90 is a powerful and durable e-fatbike built for extreme terrain such as snow, sand and rough off-road trails. The updated model features e-bike specific components designed for long service life and minimal maintenance.
At its heart is the Shimano EP6 motor, delivering smooth and powerful assistance even on steep climbs. The drivetrain is based on the Shimano CUES LinkGlide 1x10 system, engineered for durability and reduced wear, making it ideal for demanding electric mountain biking.
Reliable stopping power is provided by Shimano MT520 four-piston hydraulic disc brakes. The Manitou Mastodon suspension fork with 120 mm travel absorbs rough terrain, while 26x4.8" fat tires ensure outstanding traction. A One1 dropper seatpost completes the setup for confident riding on technical sections.
- Motor: Shimano EP6

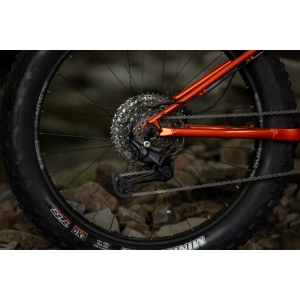

- Drivetrain: Shimano CUES LinkGlide 1x10
- Brakes: Shimano MT520, 4-piston
- Fork: Manitou Mastodon, 120 mm
- Tires: 26x4.8"
- Seatpost: One1 dropper post
| Frame | - | Alloy Al-6061 T6 Custom tubing, Fat Fun Geometry, Shark Spine EVO 26er Fat, SHIMANO STEPS DU hanger, 2nd Gen. battery integration, 4.8" Tire ready, Tapered Head Tube, 197x12, Post Mount, Inner Cable Routing, Kick stand and Dropper post ready, RC470 |
| Wheel size | - | 26" |
| Gears | - | 10 (1x10) |
| Suspension fork | - | Manitou Mastodon COMP, 120mm |
| Brake system | - | SHIMANO MT520 / RT66 180mm |
| Rear derailleur | - | SHIMANO CUES RD-U6000 GS |
| Shifters | - | SHIMANO CUES SL-U6000 RapidFire Plus |
| Crankset | - | ONE1 ET39-F40-SHP80-L/R, 34T |
| Cassette | - | SHIMANO CS-LG400-10, 11-48T |
| Chain | - | SHIMANO CN-LG500 |
| Headset | - | ACROS ZS44/ZS56 |
| Stem | - | ONE1 TDS-D607 Alloy, 35MM, +7° |
| Handlebar | - | ONE1 Alloy, 9° backsweep, 20mm rise, 760mm, 35mm |
| Grips | - | HERRMANS ERGO |
| Wheelset | - | WTB Fatbike Tubeless System rattapaar |
| Front tyre | - | Maxxis Minion FBF Exo TR, 26x4.80 |
| Rear tyre | - | Maxxis Minion FBR Exo TR, 26x4.80 |
| Saddle | - | WTB Koda Sport |
| Seat post | - | ONE1 Alloy, MT171, 150mm dropper post, 30.9mm |
| Pedals | - | - |
| Drive unit | - | SHIMANO STEPS EP600, 36V, 250W, 85Nm |
| Battery | - | DARFON, 36V, 504 Wh, integreeritud |
| Charger | - | DARFON 4A Smart Plus |
| Display | - | SHIMANO SC-EM800 |
| Kickstand | - | ATRAN VELO, DUX HV |
| Weight approx | - | 25,55 kg |
| Max Weight (bike + rider) | - | 150 kg |
| *Because of ongoing problems in the delivery chain, the bike can be delivered with modifications. | ||
