CUBE
Cube Aim Pro
- Durable aluminium frame
- Hydraulic disc brakes
- Shimano 2x8 drivetrain
- 100 mm suspension fork
Frame size:

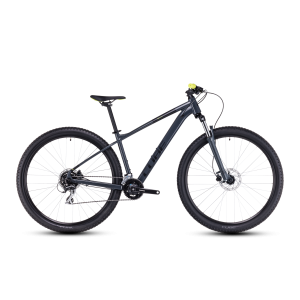

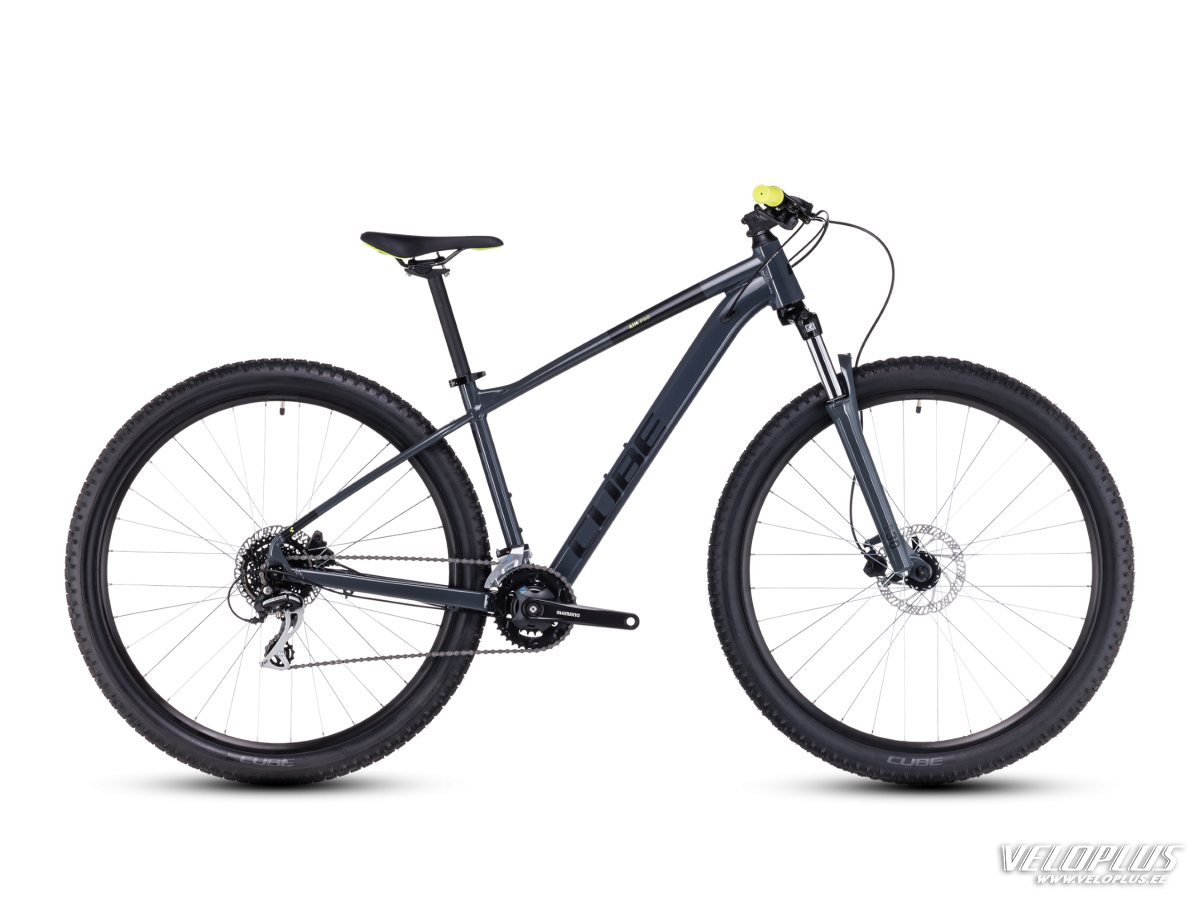

Mountainbike Cube Aim Pro
Got an off-road itch that needs scratching? The Aim Pro could be the relief you're looking for. With its grippy tyres and 100mm suspension fork, it's got the comfort and control you'll need to keep riding when you reach the end of the road. Wide-ratio Shimano 2x8 gears will help you see off the steepest climbs, and strong hydraulic brakes put you in control on the descents.

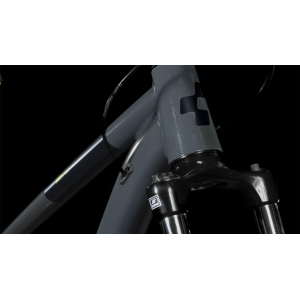

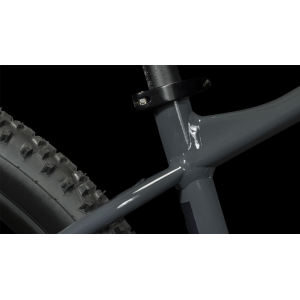

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
- ALUMINIUM LITE - There's aluminium, and then there's CUBE Aluminium Lite. This heat-treated 6061 aluminium is stiff, fatigue-resistant and, because of its natural corrosion resistance, a great material from which to make lightweight tube sets – and bicycle frames. And it does all this without adding unnecessary weight, so you can get the best enjoyment out of your CUBE.
- INTERNAL CABLE ROUTING - Cables connect your handlebar controls to vital components like gears and brakes, but there's no need for them to get in your way. With Internal Cable Routing we've reduced clutter and maintenance by running cables through the frame, keeping them out of the way of dust and water contamination – or damage from abrasion – as well as cleaning up your bike's appearance.
- SIC MOUNT - Flexibility is important for a bike that's going to slot into your life. That's why, for our Semi Integrated Carrier Mount, we designed a system that's unobtrusive when you don't need it and really simple to use when you do. By adding our Semi-Integrated Carrier your CUBE can take on the shopping, your commute, or take you further afield at the weekend…
- KICKSTAND MOUNT - A kickstand can be useful, no two ways about it. But if it's going to do its job properly, it needs a secure mount. That's why we put as much effort into designing the Kickstand Mount for our frames as we do for any other feature. Neat, unobtrusive but exceptionally strong and stable, it's the best way to help keep your CUBE bike upright when you're not riding it.
Frame | - | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
Wheel size | - | 29" |
Gears | - | 16 (2x8) |
Suspension fork | - | SR Suntour XCT Disc, 100mm |
Brake system | - | Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160) |
Rear derailleur | - | Shimano RD-M3020, 8-Speed |
Front derailleur | - | Shimano FD-M315, Top Swing, 31.8mm Clamp |
Shifters | - | Shimano SL-M315, Rapidfire-Plus |
Bottom bracket | - | Feimin FP-B902N, 73mm BSA |
Crankset | - | Shimano FC-M315, 36x22T, 170mm |
Cassette | - | Shimano CS-HG31, 11-34T |
Chain | - | KMC Z8.3 |
Headset | - | CUBE FPH868, Semi-Integrated |
Stem | - | CUBE Performance Stem, 31.8mm |
Handlebar | - | CUBE Rise Trail Bar, 680mm |

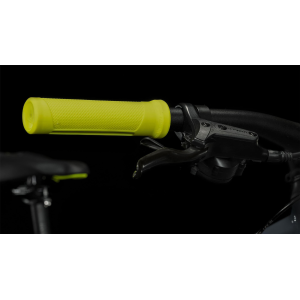

Grips | - | ACID React |
Rims | - | KMC Z8.3 |
Front hub | - | CUBE Alloy Light, QR, 6-Bolt |
Rear hub | - | CUBE Alloy Light, QR, 6-Bolt |
Tyres | - | CUBE IMPAC Smartpac, 29x2.25 |
Saddle | - | Natural Fit Venec Lite |
Seat post | - | CUBE Performance Post, 27.2mm |

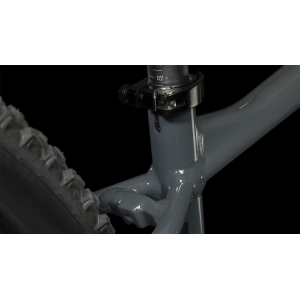

Seat clamp | - | CUBE Varioclose, 31.8mm |
Pedals | - | CUBE PP MTB |
Weight | - | 14,7 kg |
*Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
Outside of Estonia we send bikes only in bike box and it will need an assemble by client.
Average bike order processing time is 2-3 business days + shipping.
