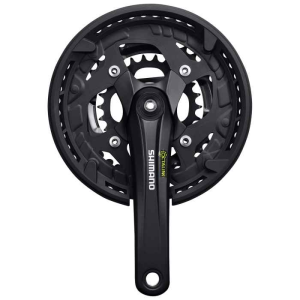

Crankset Shimano Alivio FC-T4010 (3x9 speed)
Product out of stock
SHIMANO ALIVIO - OCTALINK - Trekking Crankset - 3x9-speed
The SHIMANO FC-T4010 crank offers a wide 3x9 speed gearing range and uses an OCTALINK bb interface.
| MODEL NO | FC-T4010 |
|---|---|
| SERIES | SHIMANO ALIVIO T4000 Series |
| Color | Black |
| Rear speeds | 9 |
| Compatible chain | HG 9-speed |
|---|---|
| Chain line (mm) | 50 |
| P.C.D. (mm) | 104/64 |
| Spider/gear arms | 4 |
| Chainring combination | 44-32-22T, 48-36-26T |
| Q-factor (mm) | 187.8 |
| Crank arm length (mm)|165 | ✔ |
| Crank arm length (mm)|170 | ✔ |
| Crank arm length (mm)|175 | ✔ |
| Optional chain guard|With chain guard | ✔ |
| Optional chain guard|Without chain/bash guard | ✔ |
| OCTALINK | ✔ |
| Compatible bottom bracket type|OCTALINK | ✔ |
| Recommended bottom bracket|Threaded (normal) | BB-ES300 |
| Axle length of BB-UN/ES (mm)|Threaded (normal) | 126 |
| Axle length of BB-UN/ES (mm)|Threaded (chain case) | 126-K |
| Threaded bottom bracket shell width (mm)|68 | ✔ |
| Threaded bottom bracket shell width (mm)|73 | ✔ |
| Chain case compatible | ✔ |
| Stainless chain guard fixing screw | ✔ |
| Crank fixing screw included | ✔ |
