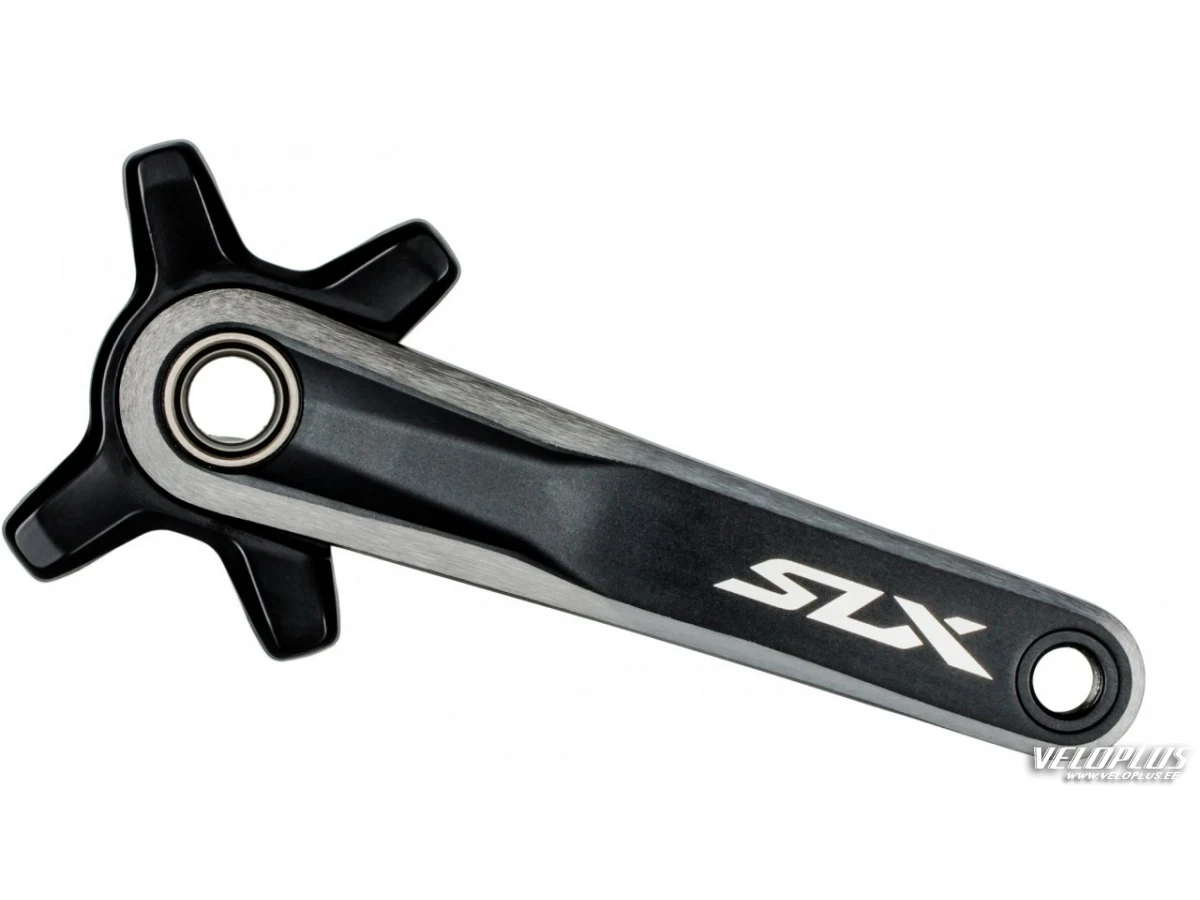

SLX - HOLLOWTECH II - MTB Crankset - 1x11-speed
Perfect for 1x11 MTB drivetrains, the SLX FC-M7000-11-1 crank uses a new 3D composite chainring for improved driving rigidity. It is available with 30, 32, and 34T chainrings.
FEATURE
•New 3D composite chain ring´s teeth composition is optimized for each chainwheel load out
•Improved driving rigidity
•Close ratio gear combination for minimum shifting gap and maintaining rhythm (FC-M7000-11-2)
•Enhanced chain retention (FC-M7000-11-1)
•Better sealing and better rotation
•Small ball bottom bracket
BENEFIT
•Solid pedaling efficiently without loss
•Balance of strength and lightweight by 2pcs crank construction
MODEL NO - FC-M7000-11-1
SERIES - SLX M7000 Series
Average weight - 721.1 g (34T), 715.4 g (32T), 699.3 g (30T)
Remarks - w/o chainring spec available for OTC, chainring is sold separately (SM-CRM70)
Chain line (mm) - 50
Chain ring combination - 34T, 32T, 30T (SM-CRM70)
Compatible BB type - Outboard
Compatible chain - HG-X11
Crank Arm Length - 170 mm, 175 mm
Crank fixing bolt included - ✔
Gear arms - 4 arm
HOLLOWTECH II - ✔
P.C.D. (mm) - 96
Rear speeds - 11
Recommended BB_Pressfit - BB-MT800-PA
Recommended BB_Threaded (normal) - BB-MT800
Technology - HOLLOWTECH II
Threaded BB Shell Width - 68 mm, 73 mm
Crank arm fixing bolt_With - ✔
Includes Crank Arm Fixing Bolt - Yes
Q-factor (mm) - 176
