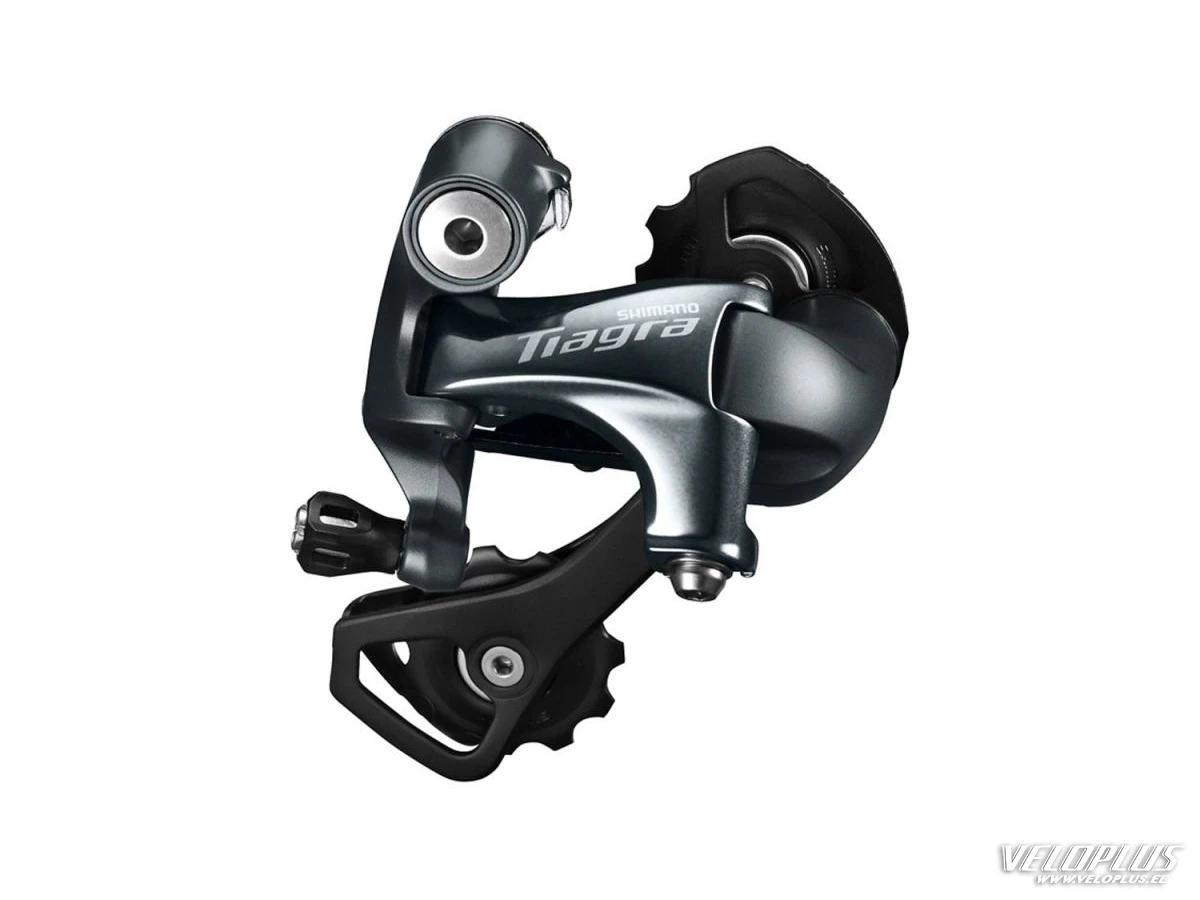

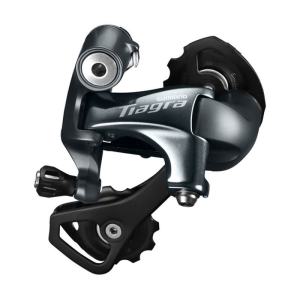

SHIMANO TIAGRA - Rear Derailleur - Medium Cage - 10-speed
The SHIMANO TIAGRA rear derailleur shifts with a consistently smooth, light action. Designed for 10-speed road drivetrains, it is offered in short and medium cage options.
MODEL NO - RD-4700-GS
SERIES - SHIMANO TIAGRA 4700 Series
Cable adjuster - ✔
Compatible chain - HG-X Chain
Direct attachment (Conventional) - ✔
Fluoric coated link bushings - 2
Low sprocket_Max. - 34T (Front double), 32T (Front triple)
Low sprocket_Min. - 28T (Front double), 25T (Front triple)
Max. front difference - 16T (Front double), 20T (Front triple)
Pulley_Sunken type pulley bolt - ✔
Pulley_Teeth - 11T
Pulley cage - GS
Rear speeds - 10
Top-Normal Spring Type - Double servo
Top sprocket_Max. - 12T
Top sprocket_Min. - 11T
Total capacity - 41T
Riveted Adapter Type - Road
